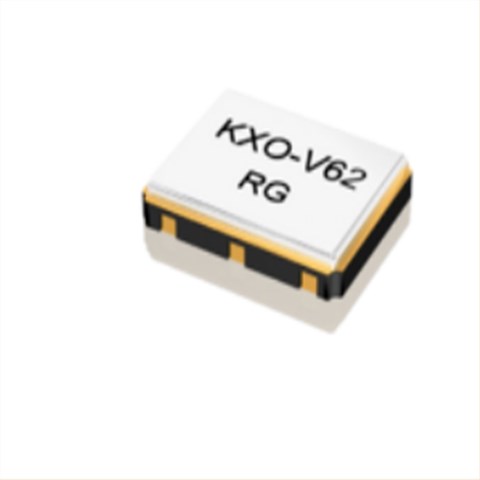

石英壓控晶振,12.72002 KXO-V62T晶振,GEYER壓控晶振，公差:±50 ppm，工作溫度：-40°C~+85°C，儲存溫度范圍：-40°C~+125°C，尺寸：5.0mmx3.2mm，頻率：172.8520MHz，進口壓控晶體振蕩器，石英晶體振蕩器，有源晶振，SMD晶振，無鉛環保晶振，具有：超小型，耐高溫，耐磨損，耐損耗，高質量，高精度等特點，應用于:藍牙設備，醫療設備，安防設備，汽車電子控制板等。

GEYER晶振，作為全球企業可持續的社會的實現，集團一體推進地球環境保全活動。推進了環境考慮的產品和服務的陶瓷面石英晶體諧振器產品和服務。為了提供社會，努力維護地球環境。遵守環境相關的法令、條例、限制、協定及其他要求事項，環境負荷的降低和污染的防止努力。

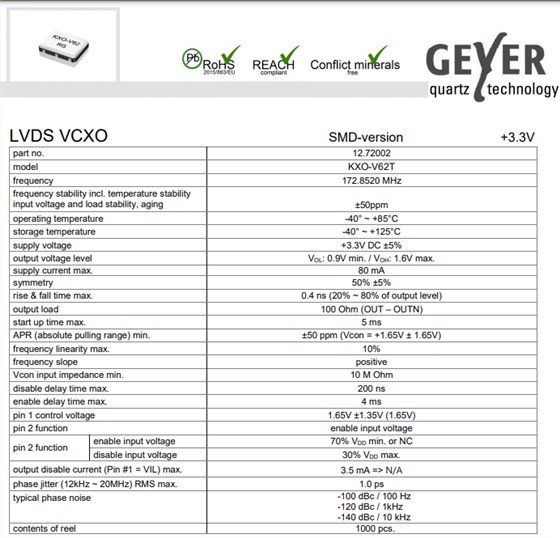

石英壓控晶振,12.72002 KXO-V62T晶振,GEYER壓控晶振，參數表

part no.		12.72002
model表貼式晶振		KXO-V62T
frequency		172.8520 MHz
frequency stability incl. temperature stability input voltage and load stability, aging		±50ppm
operating temperature		-40° ~ +85°C
storage temperature		-40° ~ +125°C
supply voltage		+3.3V DC ±5%
output voltage level		VOL: 0.9V min. / VOH: 1.6V max.
supply current max.		80 mA
symmetry		50% ±5%
rise & fall time max.		0.4 ns (20% ~ 80% of output level)
output load		100 Ohm (OUT – OUTN)
start up time max.		5 ms
APR (absolute pulling range) min.		±50 ppm (Vcon = +1.65V ± 1.65V)
frequency linearity max.		10%
frequency slope		positive
Vcon input impedance min.		10 M Ohm
disable delay time max.		200 ns
enable delay time max.貼片晶振		4 ms
pin 1 control voltage		1.65V ± 1.35V ( 1.65V)
pin 2 function		enable input voltage
pin 2 function	enable input voltage	70% VDDmin. or NC
	disable input voltage	30% VDDmax.
output disable current (Pin #1 = VIL) max.		3.5 mA => N / A
phase jitter (12kHz ~ 20MHz) RMS max.		1.0 ps
typical phase noise		-100 dBc / 100 Hz -120 dBc / 1kHz -140 dBc / 10 kHz
contents of reel		1000 pcs.

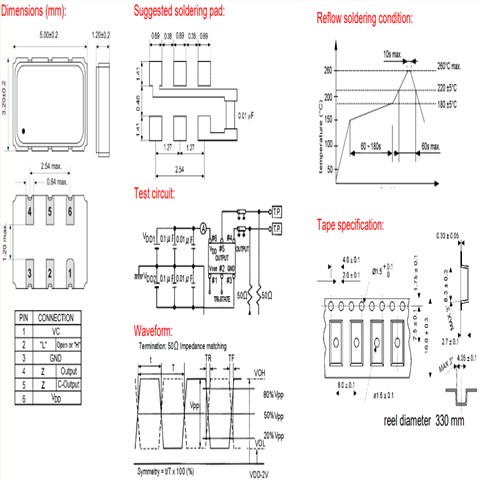

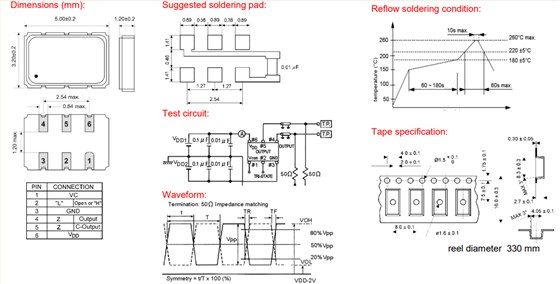

石英壓控晶振,12.72002 KXO-V62T晶振,GEYER壓控晶振，尺寸圖

KXO-V62T-5

編碼	晶振廠家	描述	型號	標準頻率	頻率容差	工作溫度
12.95582	石英晶體振蕩器	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	Geyer 晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	Geyer 晶振	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
12.90344	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V94T	4 MHz	±50ppm	-40°C ~ 85°C
12.95538	Geyer 晶振	XTAL OSC XO 27.1200MHZ SMD	KXO-V95	27.12 MHz	±50ppm	-20°C ~ 70°C
12.94364	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	48 MHz	±100ppm	-40°C ~ 85°C
12.95568	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95F	48 MHz	±50ppm	-40°C ~ 85°C
12.90324	Geyer 晶振	XTAL OSC XO 27.0000MHZ HCMOS SMD	KXO-V94	27 MHz	±50ppm	-40°C ~ 85°C
12.94609	Geyer 晶振	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	1 MHz	±50ppm	-40°C ~ 85°C
12.95101	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	48 MHz	±50ppm	-40°C ~ 85°C
12.92146	Geyer 晶振	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	22.1184 MHz	±100ppm	-40°C ~ 85°C
12.90327	Geyer 晶振	XTAL OSC XO 48.0000MHZ HCMOS SMD	KXO-V94T	48 MHz	±50ppm	-40°C ~ 85°C
12.95091	Geyer 晶振	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	10 MHz	±50ppm	-40°C ~ 85°C
12.94449	Geyer 晶振	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	18.432 MHz	±100ppm	-40°C ~ 85°C
12.94456	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	3.6864 MHz	±100ppm	-40°C ~ 85°C
12.95551	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	48 MHz	±50ppm	-40°C ~ 85°C
12.90322	Geyer 晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	KXO-V94T	20 MHz	±50ppm	-40°C ~ 85°C
12.95524	Geyer 晶振	XTAL OSC XO 25.0000MHZ SMD	KXO-V95E	25 MHz	±100ppm	-40°C ~ 85°C
12.9034	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V94T	32.768 kHz	±20ppm	-40°C ~ 85°C
12.95543	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95104	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	32.768 kHz	±50ppm	-20°C ~ 70°C
12.94422	Geyer 晶振	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	11.0592 MHz	±100ppm	-40°C ~ 85°C
12.95548	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	4 MHz	±50ppm	-40°C ~ 85°C
12.90307	Geyer 晶振	XTAL OSC XO 1.8432MHZ HCMOS SMD	KXO-V94	1.8432 MHz	±50ppm	-40°C ~ 85°C
