VTEUMCJANF-27.000000,7050壓控有源晶振,Taitien振蕩器

產品簡介

VTEUMCJANF-27.000000,7050壓控有源晶振,Taitien振蕩器，編碼：VTEUMCJANF-27.000000，型號：VT，工作溫度：-20°C ~ 70°C，尺寸：7.0*5.0mm，頻率：27 MHz，精度：±50ppm，電壓：3.3V，電流：20mA，進口晶振，壓控晶振，有源晶振，VCXO石英晶體振蕩器，石英晶振，典型7.0 x 5.0 x 1.45 mm 6焊盤陶瓷SMD封裝，可提供緊密對稱，輸出頻率高達250 MHz，三態使能/禁用，適用于時鐘鐘表，智能家具家電，無線電話，智能手機，無線通信。

產品詳情

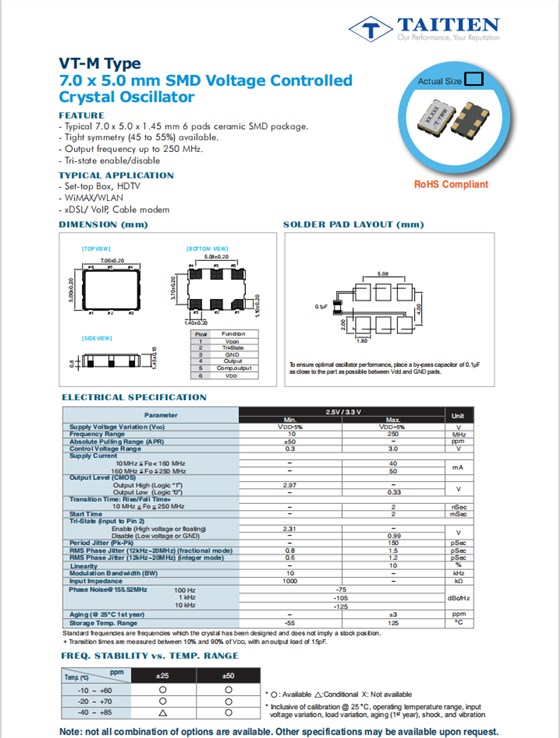

VTEUMCJANF-27.000000,7050壓控有源晶振,Taitien振蕩器，參數表

編碼	VTEUMCJANF-27.000000
品牌	TAITIEN
型號	VT
頻率	19.44 MHz
精度	±50ppm
電壓	3.3V
電流	10mA
工作溫度	-20°C ~ 70°C
尺寸	7.0*5.0mm

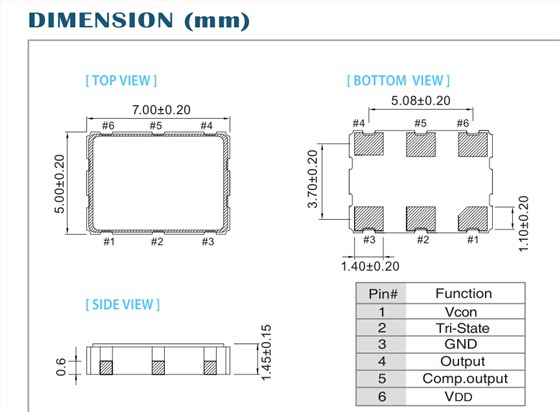

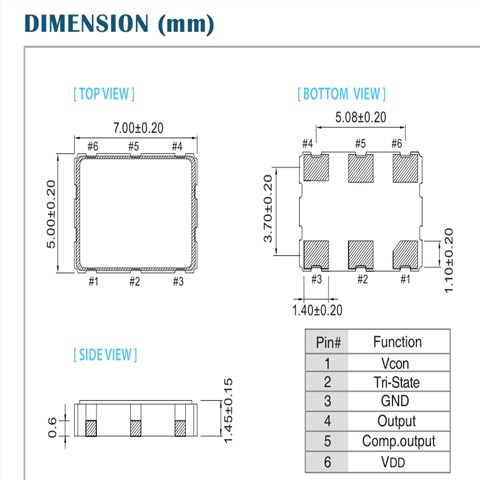

VTEUMCJANF-27.000000,7050壓控有源晶振,Taitien振蕩器，尺寸圖

Mfr Part #	壓控晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
VTEUMCJANF-19.440000	Taitien	VT	VCXO	19.44 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-19.440000	Taitien	VT	VCXO	19.44 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-35.328000	Taitien	VT	VCXO	35.328 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMCJANF-35.328000	Taitien	VT	VCXO	35.328 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMCJANF-25.000000	Taitien	VT	VCXO	25 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-33.333000	Taitien	VT	VCXO	33.333 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPLJANF-15.360000	Taitien	VT	VCXO	15.36 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMCJANF-27.000000	Taitien	VT	VCXO	27 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-2.048000	Taitien	VT	VCXO	2.048 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMCJANF-4.096000	Taitien	VT	VCXO	4.096 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUBLJANF-31.250000	Taitien	VT	VCXO	31.25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-35.328000	Taitien	VT	VCXO	35.328 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMCJANF-77.760000	Taitien	VT	VCXO	77.76 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPLJANF-61.440000	Taitien	VT	VCXO	61.44 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPLJANF-40.960000	Taitien	VT	VCXO	40.96 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-38.880000	Taitien	VT	VCXO	38.88 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-2.048000	Taitien	VT	VCXO	2.048 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPLJANF-16.384000	Taitien	VT	VCXO	16.384 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-25.000000	Taitien	VT	VCXO	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUALJANF-30.720000	Taitien	VT	VCXO	30.72 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMCJANF-50.000000	Taitien	VT	VCXO	50 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMLJANF-10.000000	Taitien	VT	VCXO	10 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-19.440000	Taitien	VT	VCXO	19.44 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-32.000000	Taitien	VT	VCXO	32 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPCJANF-38.880000	Taitien	VT	VCXO	38.88 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPLJANF-25.000000	Taitien	VT	VCXO	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPLJANF-32.768000	Taitien	VT	VCXO	32.768 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
